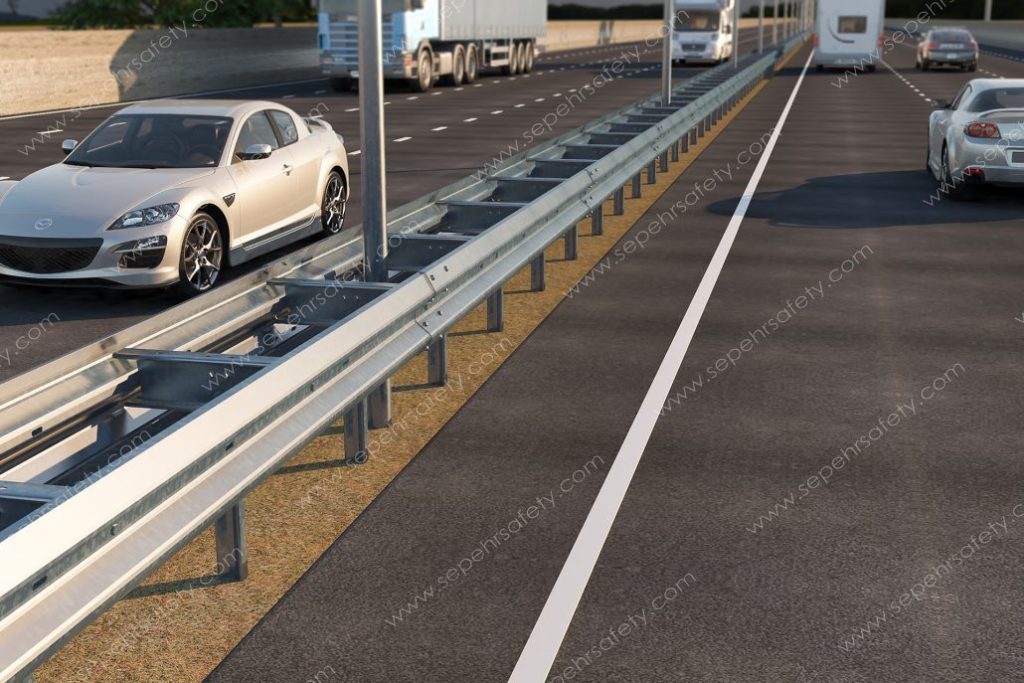

DSSA 1.33 is a double-sided median barrier tested to EN 1317 for containment level H2, with working width W7 (2.3 m) and posts every 1330 mm. The system belongs to the DDSP — median family and is supplied as a complete kit — W-beams, posts, spacers, bolts and accessories — all hot-dip galvanized.
DSSA 1.33 technical specifications
| Drawing number | S1.1-131 |
|---|---|
| Containment level (EN 1317) | H2 |
| Working width | W7 (2.3 m) |
| Impact severity level (ASI) | A |
| Test length | 64 m |
| Construction height | 750 mm |
| Construction width | 800 mm |
| Distance between posts | 1330 mm |
| Weight (profile A) | 42.3 kg/m |
| Weight (profile B) | 40.4 kg/m |
