Guardrail manufacturing, from coil to complete kit
How Sepehr Sanat Steela produces EN 1317 and ISIRI 21208 road restraint systems in Isfahan: steel selection, roll forming, hot-dip galvanizing and complete installation kits.
Stage 01

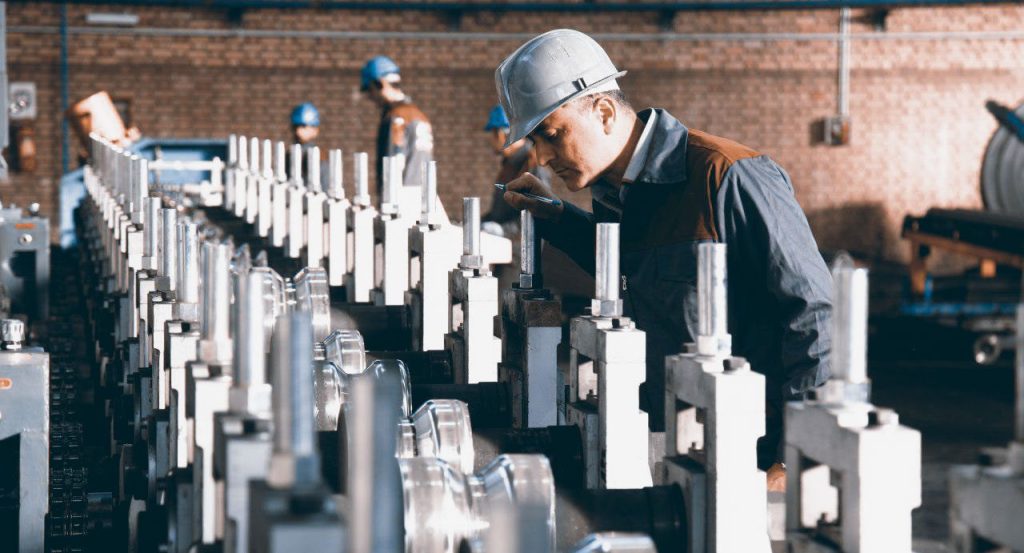

Steel selection and roll forming
Hot-rolled S235JR and S355JR steel (EN 10025) is cut and roll-formed into W-beams, posts and spacers exactly to each system’s drawing.
W-beam lengths of 4300 and 4170 mm
Beam thicknesses from 2.67 to 3.43 mm
Posts and spacers formed to the tested system geometry
Stage 02
Hot-dip galvanizing
Each part is fully immersed in molten zinc, giving a continuous coating that protects the steel for decades of outdoor service.
Coating covers inside and outside surfaces
Matte zinc finish reduces glare for drivers
No paint layer to maintain
Stage 03
Complete installation kits

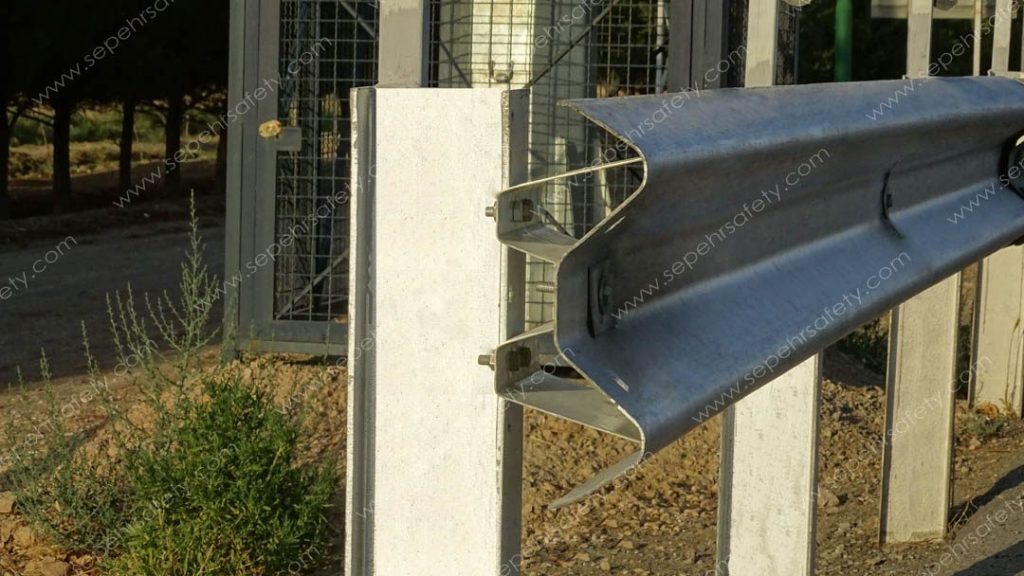

Every system ships as a kit: W-beams, posts, spacers, bolts, nuts and end pieces packed per project length.
Accessories matched to each tested system
Packed and labelled per project
Installation guidance on request
What leaves our plant
EN 1317 systems
0
containment levels
0
beam thicknesses
0
years in steel
0+
Quality
Tested to EN 1317, managed to ISO 9001:2015
EN 1317 classifies a road restraint system by its containment level (N2, H1, H2, H4b), working width (W1–W8) and impact severity (A or B). Our systems are crash-tested to it, production runs under an ISO 9001:2015 quality management system, and the Persian Guardrail is produced to Iran’s national standard ISIRI 21208.
