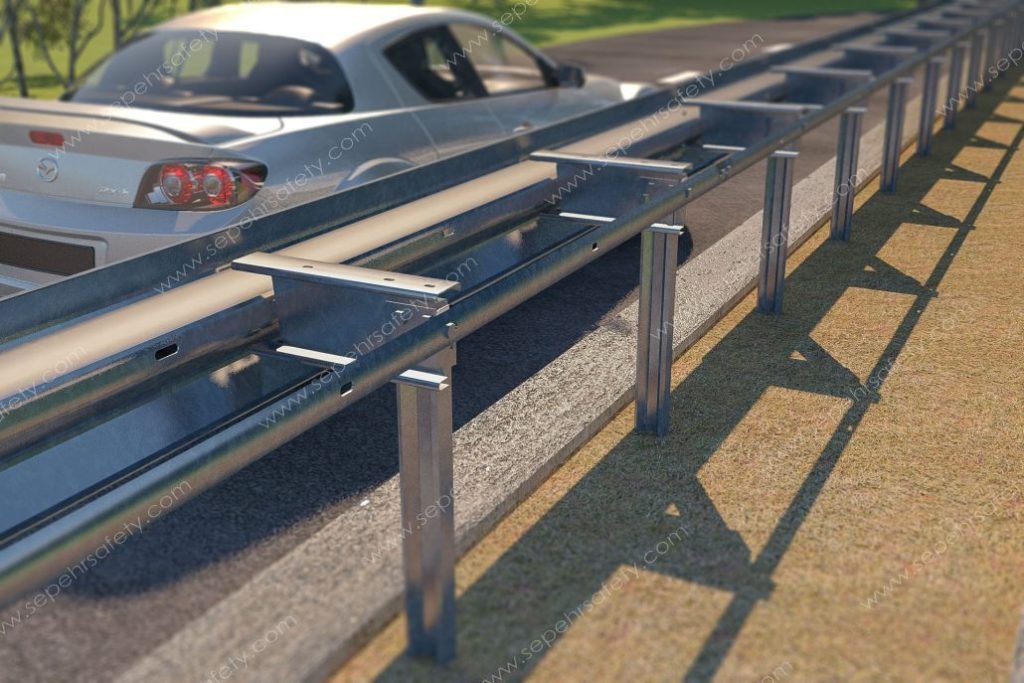

HSSA 1.33 guardrail system installed beside a road

HSSA 1.33

HSSA 1.33 is a higher-containment barrier tested to EN 1317 for containment level H1, with working width W4 (1.2 m) and posts every 1330 mm.
Request a quote
Talk to an engineer

HSSA 1.33 is a higher-containment barrier tested to EN 1317 for containment level H1, with working width W4 (1.2 m) and posts every 1330 mm. The system belongs to the EDSP — higher containment family and is supplied as a complete kit — W-beams, posts, spacers, bolts and accessories — all hot-dip galvanized.

HSSA 1.33 technical specifications

HSSA 1.33 — EN 1317 data
Drawing numberS1.1-121
Containment level (EN 1317)H1
Working widthW4 (1.2 m)
Impact severity level (ASI)A
Test length60 m
Construction height750 mm
Construction width500 mm
Distance between posts1330 mm
Weight (profile A)30.7 kg/m
Weight (profile B)29.7 kg/m

Need help choosing the containment level?

Send us the road type, design speed and available working width — our engineers will recommend a tested system and send a quote.
