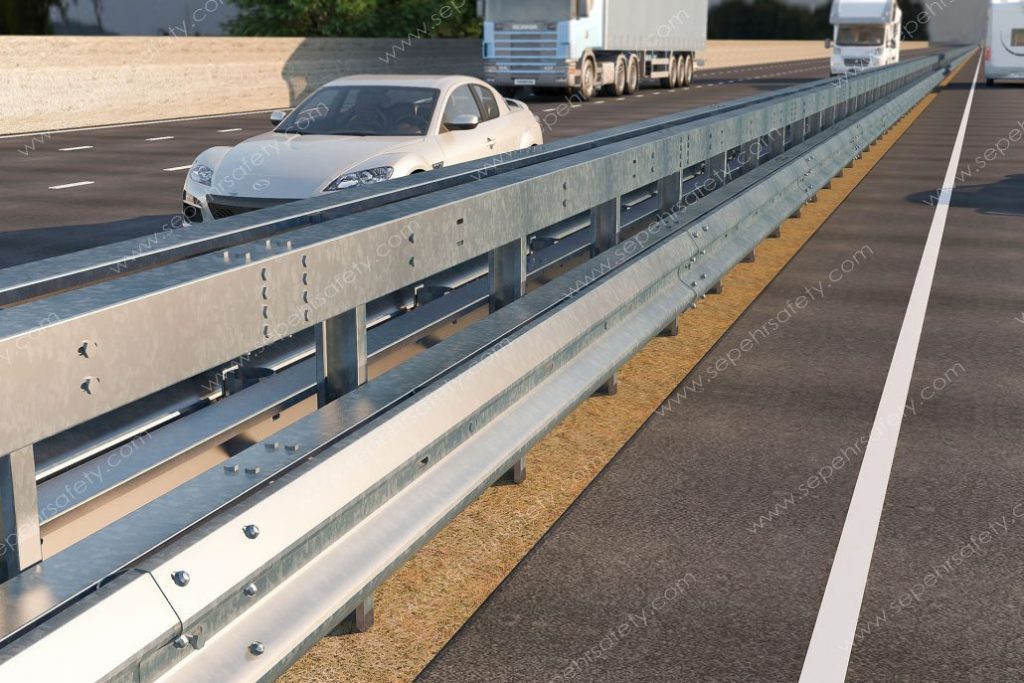

PSSA D is a heavy-duty barrier tested to EN 1317 for containment level H2, with working width W4 (1.2 m) and posts every 1330 mm. The system belongs to the Super Rail — heavy duty family and is supplied as a complete kit — W-beams, posts, spacers, bolts and accessories — all hot-dip galvanized.
PSSA D technical specifications
| Drawing number | S1.1-330 |
|---|---|
| Containment level (EN 1317) | H2 |
| Working width | W4 (1.2 m) |
| Impact severity level (ASI) | B |
| Test length | 60 m |
| Construction height | 1150 mm |
| Construction width | 860 mm |
| Distance between posts | 1330 mm |
| Weight (profile A) | 123.8 kg/m |
| Weight (profile B) | 121.8 kg/m |
