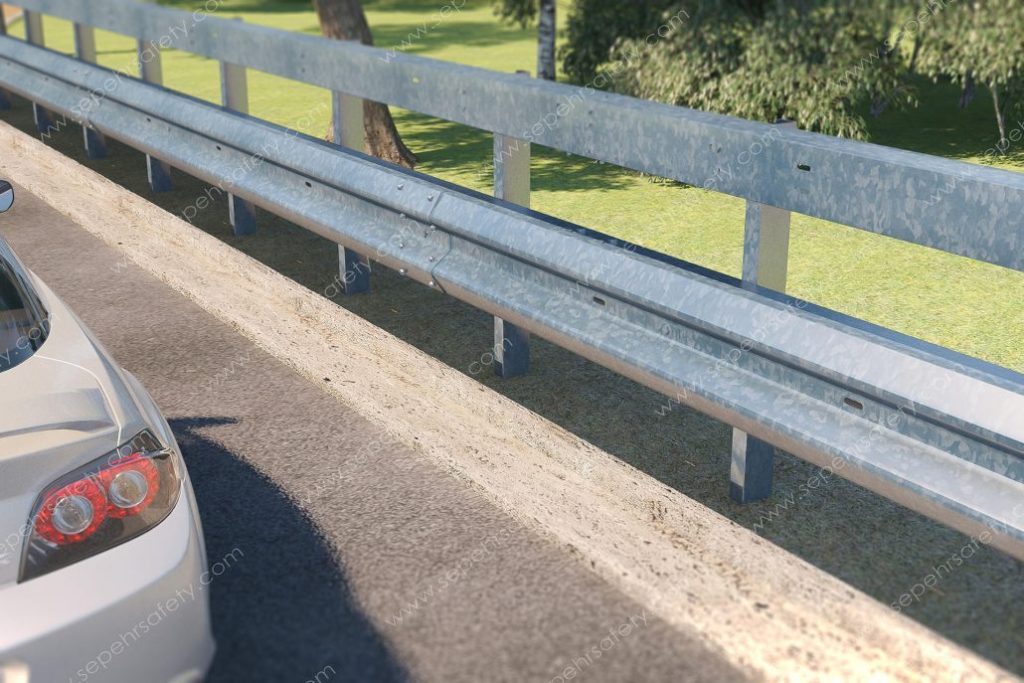

PSSA is a heavy-duty barrier tested to EN 1317 for containment level H2 / H4b, with working width W4 (1.3 m) / W7 (2.2 m) and posts every 1330 mm. The system belongs to the Super Rail — heavy duty family and is supplied as a complete kit — W-beams, posts, spacers, bolts and accessories — all hot-dip galvanized.
PSSA technical specifications
| Drawing number | S1.1-310 |
|---|---|
| Containment level (EN 1317) | H2 / H4b |
| Working width | W4 (1.3 m) / W7 (2.2 m) |
| Impact severity level (ASI) | A / A |
| Test length | 40 m / 76 m |
| Construction height | 1150 mm |
| Construction width | 500 mm |
| Distance between posts | 1330 mm |
| Weight (profile A) | 71.6 kg/m |
| Weight (profile B) | 70.6 kg/m |
