SSA 2.00

Name: SSA 2.00 highway guardrail
Brand: Sepehr Sanat Steela
SKU: S1.1-111

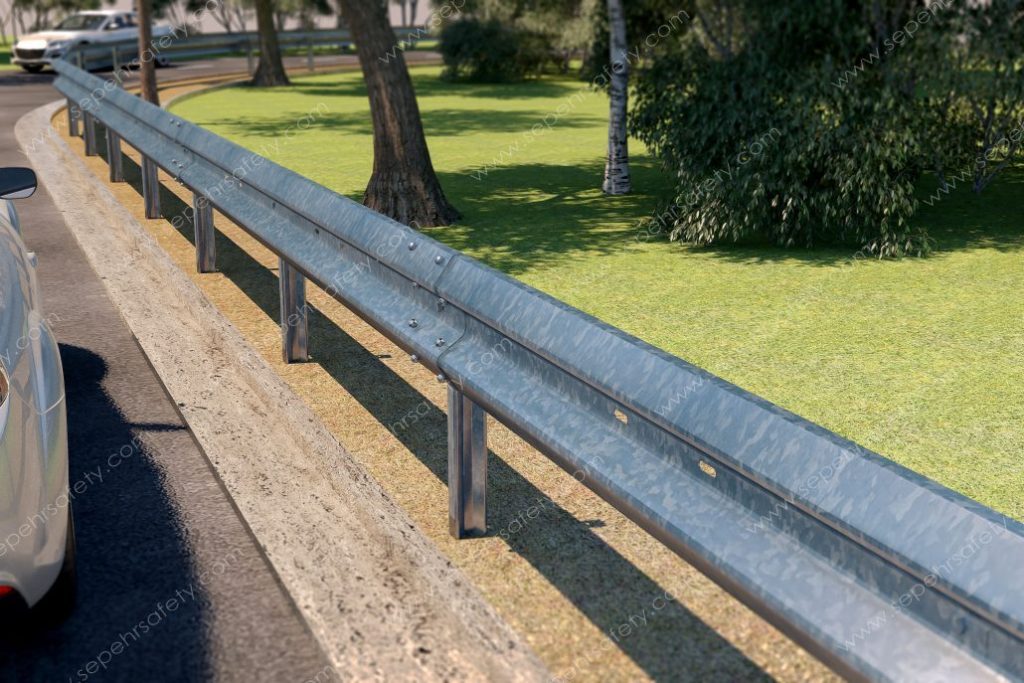

SSA 2.00 is a roadside barrier tested to EN 1317 for containment level N2, with working width W4 (1.3 m) and posts every 2000 mm.

SSA 2.00 is a roadside barrier tested to EN 1317 for containment level N2, with working width W4 (1.3 m) and posts every 2000 mm. The system belongs to the ESP — roadside family and is supplied as a complete kit — W-beams, posts, spacers, bolts and accessories — all hot-dip galvanized.

SSA 2.00 technical specifications

SSA 2.00 — EN 1317 data
Drawing number	S1.1-111
Containment level (EN 1317)	N2
Working width	W4 (1.3 m)
Impact severity level (ASI)	A
Test length	60 m
Construction height	750 mm
Construction width	190 mm
Distance between posts	2000 mm
Weight (profile A)	19.6 kg/m
Weight (profile B)	18.7 kg/m

Need help choosing the containment level?

Send us the road type, design speed and available working width — our engineers will recommend a tested system and send a quote.
